Predator Industrial Panel PCs
What is a Predator Industrial Panel PC?

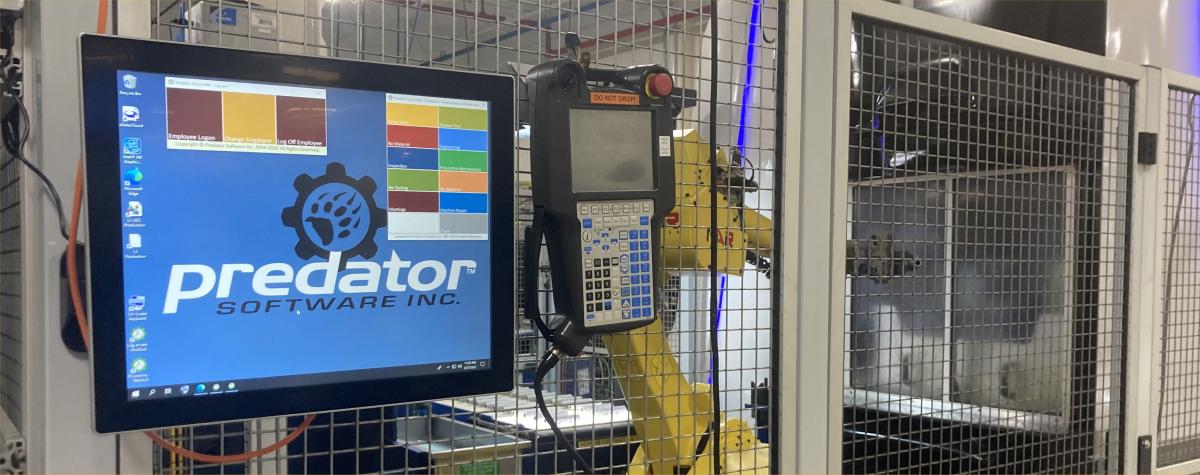

Predator Industrial Panel PCs can be added to any CNC, CMM, PLC, robot or test stand for touch screen operation of all Predator applications and all 3rd party Windows or browser based applications including ERP, MES and other shop floor systems. All Predator Panel PCs include Windows 10 and a 3-year warranty for only $2500.
Predator Industrial Panel PCs can be added to any corporate network with automatic IT security and group policies taking affect when it joins the corporate domain. Hundreds of 3rd party mounting options are available since it is VESA MIS-D 100 x 100 mm square compatible.
Why use Predator Industrial Panel PCs?
- Single contact for shop floor software and rugged PC hardware
- All Predator applications are pre-installed and ready to run
- Reduces IT and maintenance department support for implementing the project
- Multiple mounting options based on the VESA MIS-D 100 x 100 mm square standard
- Designed to run 24x7x365 in industrial environments including harsh manufacturing environments*
- Optionally eliminate mouse and keyboard requirements with Multi-Touch interaction
- Flexible power cord options are available (US, EU, UK, AU, 15A Twist Lock and 20A Twist Lock)
- Optionally eliminate network drop requirements via WiFi with dual antennas
- Multiple Ethernet and Serial I/O for CNC, PLC, CMM, robot and test stand connections
- Reliable fanless operation with no moving parts
- Worry free with a 3 year warranty
- Only $2500 USD
NOTE* Predator Industrial Panel PCs include an IP65 certified front bezel. IP65 operation requires mounting within an IP65 enclosure to protect I/O connections. IP65 is an international standard that specifies protection from dust, oil and other non-corrosive materials. IP65 also provides protection from water projected by a nozzle.
Model 200 Standard Features
- Intel 4 core CPU
- 4 GB RAM
- 256 GB SSD
- 2 High Speed 1 GB Ethernet Ports
- 2 RS232, RS422 or RS485 Serial Ports
- 6 USB Ports
- 1 HDMI Port
- 1 VGA Port
- International power supply
- 1 Power Cord (US, POE, 15 AMP Twist Lock, 20 AMP Twist Lock, EU, AU or UK style)
- 10 Predator applications are pre-installed
- Adobe Reader and Google Chrome are pre-installed
Model 200 Functional Specifications
| Specification | General |
|---|---|
| Operating System | Windows 10 Enterprise LTSC - 64 Bit OS |
| Operating Temperature | 32 - 140°F or 0 - 60°C |
| Relative Humidity | 5 - 95% RH Non-Condensing |
| Power Input | 9 - 36 VDC with protection fuse |
| Power Adapter | 110 - 240 AC with 12 VDC output at 60W |
| EMI/EMC | CE Standards apply (EN 55022, EN 55024, EN 55032 and EN 60950-1) |
| FCC Certification | Assembled using FCC certified components |
| Vibration | 5 - 500 Hz 1G PTP |
| Shock | 30G (11ms) Operating : 40G (11ms) Non-operating |
| RoHS Compliant | Yes |
| Dimensions | 15.5 x 12.8 x 2.4 in or 392.5 x 325.0 x 60.5 mm |
| Weight | 9.8 lbs. |
| Front Bezel | IP65 (Aluminum enclosure) |
| LCD Touch Screen | 17" at 1280 x 1024 resolution |
Predator Industrial Panel PC - Part Numbers
| Part # | Description |
|---|---|
| 52000170 | Predator Panel PC Model 200 with 17" Touch Screen and Power Cord TBD |
| 52000171 | Predator Panel PC Model 200 with 17" Touch Screen and US Power Cord |
| 52000172 | Predator Panel PC Model 200 with 17" Touch Screen and EU Power Cord |
| 52000173 | Predator Panel PC Model 200 with 17" Touch Screen and UK Power Cord |
| 52000174 | Predator Panel PC Model 200 with 17" Touch Screen and AU Power Cord |
| 52000175 | Predator Panel PC Model 200 with 17" Touch Screen and 15A Twist Lock Power Cord |
| 52000176 | Predator Panel PC Model 200 with 17" Touch Screen and 20A Twist Lock Power Cord |
NOTE: Predator Industrial Panel PCs are recommended for wired or wireless Ethernet based implementations. TBD stands for To Be Determined.
